I-OPS™ In-Office Procedure System Ophthalmic Procedure Tray and Accessories

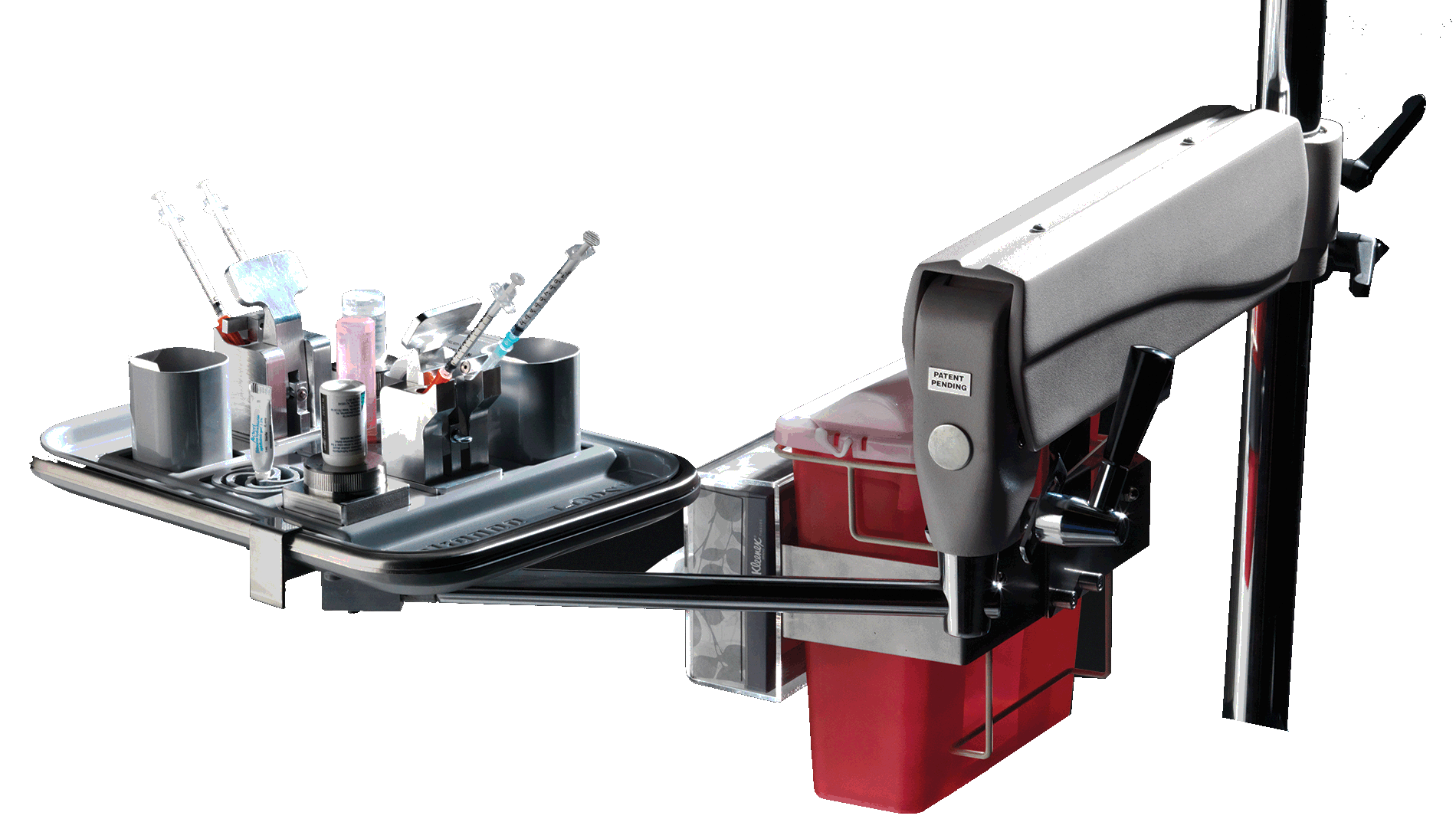

Reliance IOPS Complete Close up.gif

Save time and improve patient flow

Discover true innovation with a system that enables one-handed operation.

Instruments within easy reach for more efficient procedures

Developed in collaboration with Christopher Riemann, M.D. of the Cincinnati Eye Institute, I-OPS is an ergonomically optimized Instrument Delivery System that allows physicians to perform intravitreal injections and other minor in-office procedures much more efficiently.

I-OPS eliminates wasted movements, saving time and improving patient flow as well as patient safety and comfort.

Patent pending.

See what you’ve been missing.

Reliance I-OPS Tray.gif

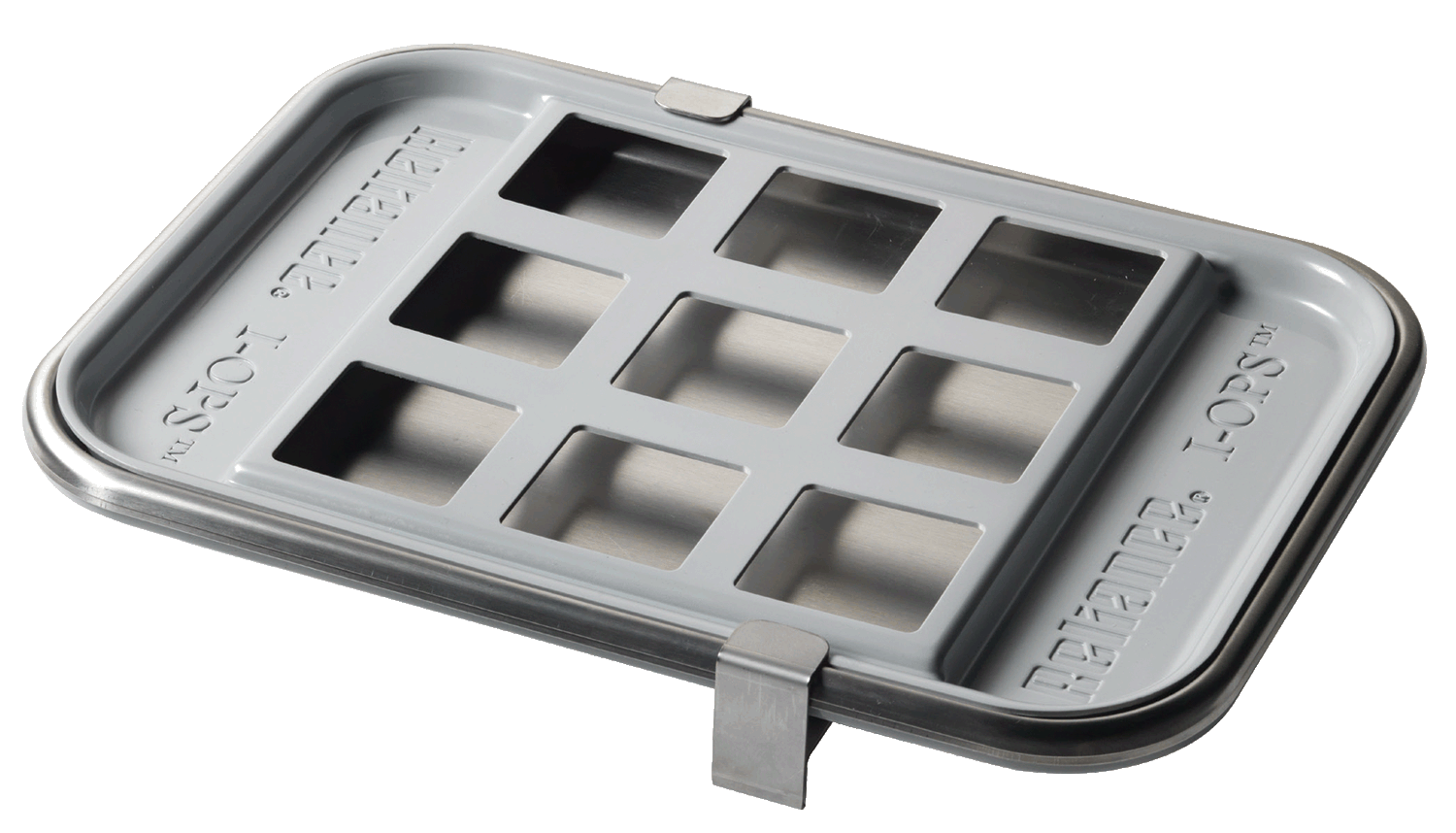

Tray

The tray size is 9” x 12.75” and holds nine components. There are also two 2” / 51mm x 8.5” / 216mm pockets to hold any additional instrumentation or accessory that might be needed.

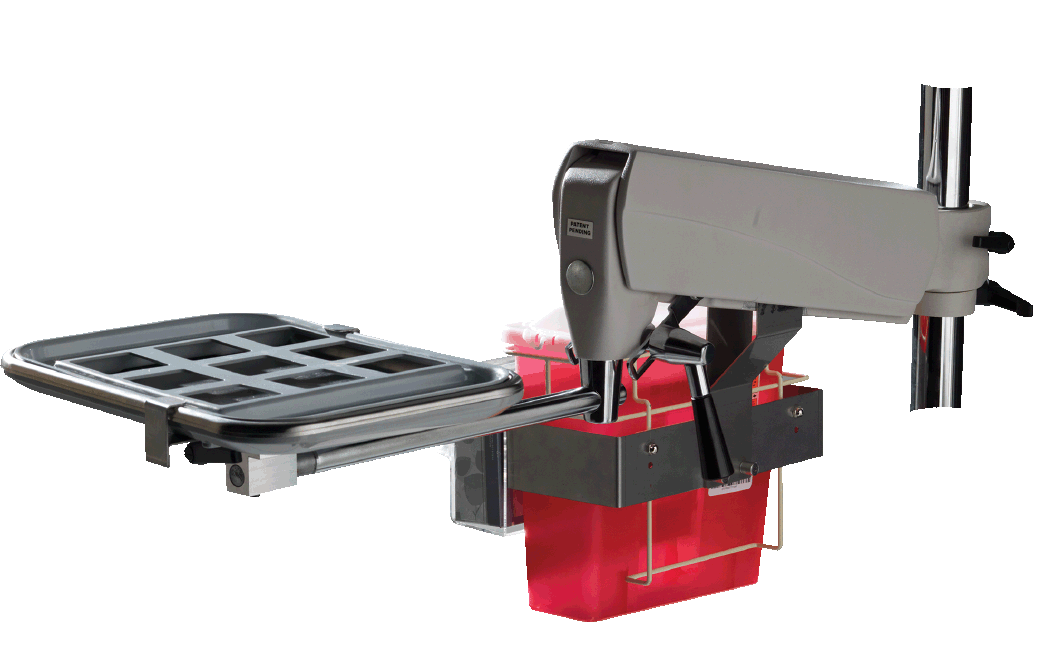

Deluxe Arm

(541000)

The first of two arm styles available, the Deluxe Arm is designed to work exclusively with Reliance stand poles. It can be adjusted vertically to accommodate different working heights. The Tissue Box and Sharps Container come standard with the arm as well as the Tray assembly.

Reliance I-OPS Arm 1.gif
Reliance I-OPS Arm 2.gif

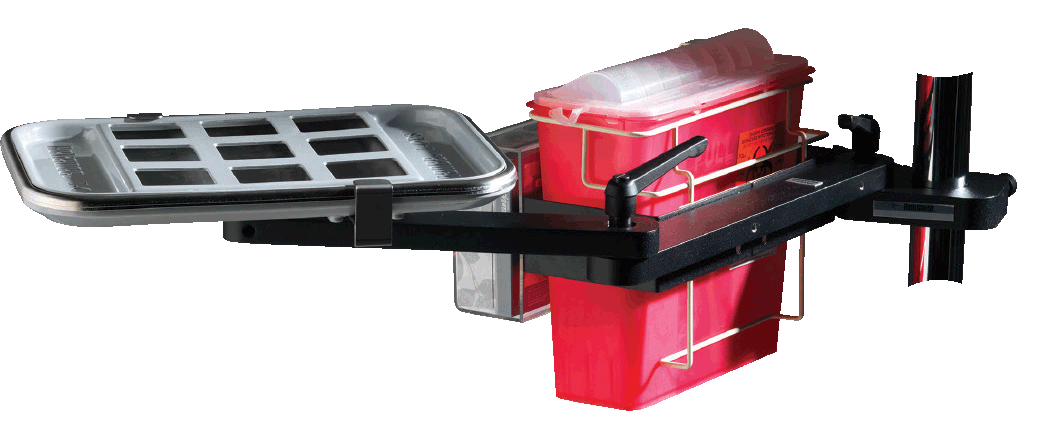

Basic Arm

(540000)

Accommodating a variety of stand pole sizes, the Basic Arm is stationary in the vertical position once put into place. The Tissue Box and Sharps Container come standard with the arm as well as the Tray assembly.

Reliance I-OPS Twist bottle holder.gif

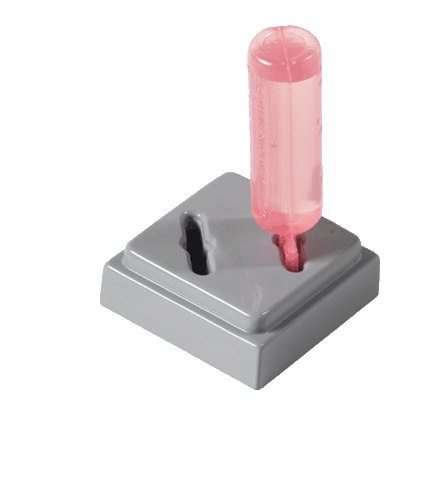

Twist-top bottle holder

(3073199)

Accommodates one-time use, twist-top bottles. Supports two bottles.

Reliance I-OPS Locking dropper-bottle ho

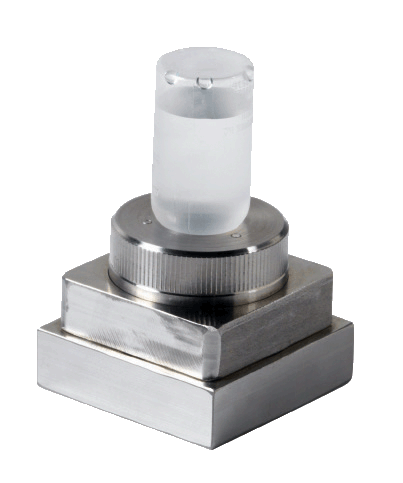

Locking dropper-bottle holder

(3073792)

Accommodates a variety of dropper bottle cap sizes (9/32” / 7.1mm to 13/16” / 20.5mm). Allows convenient one-handed operation once cap is locked into holder.

Reliance I-OPS gel pack holder.gif

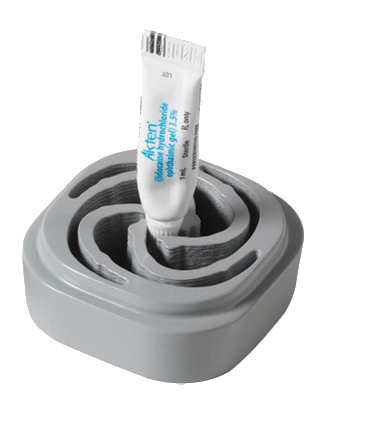

Gel-pack holder

(3073399)

Accommodates a variety of gel pack cap sizes (0.230” / 5.8mm to 0.34” / 8.6 mm). Allows convenient one-handed operation once cap is locked into holder

Reliance I-OPS Double Syringe Holder.gif

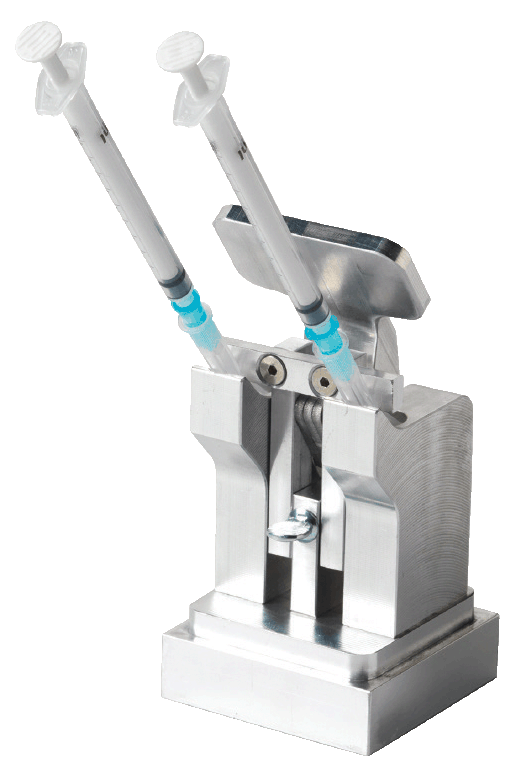

Dual syringe holder

(3081292)

Accommodates a variety of syringe cap sizes (Ø3/32” / 2.4mm to Ø5/16 / 8mm, 19 mm from end of cap to tip). Designed for convenient one-handed use. Syringe cap remains locked in place, releasing syringe for injections. Supports two syringes. Please note that if using two syringes, both syringes must be approximately the same size.

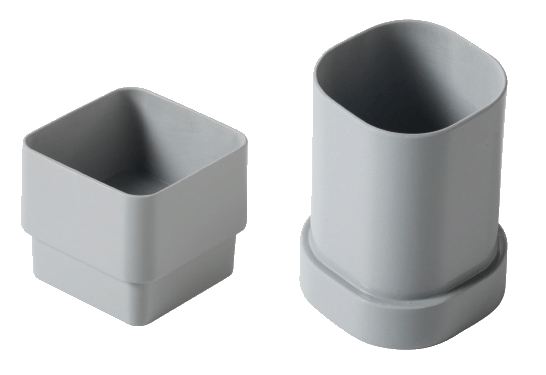

Deep and Shallow Cups

Deep cup: (3073499) , shallow cup: (3073099)

Assists in organizing additional small items on tray, and prevents material from entering sub-components of tray.

Reliance I-OPS deep and shallow cup.gif
Reliance I-OPS sharps container tissue b

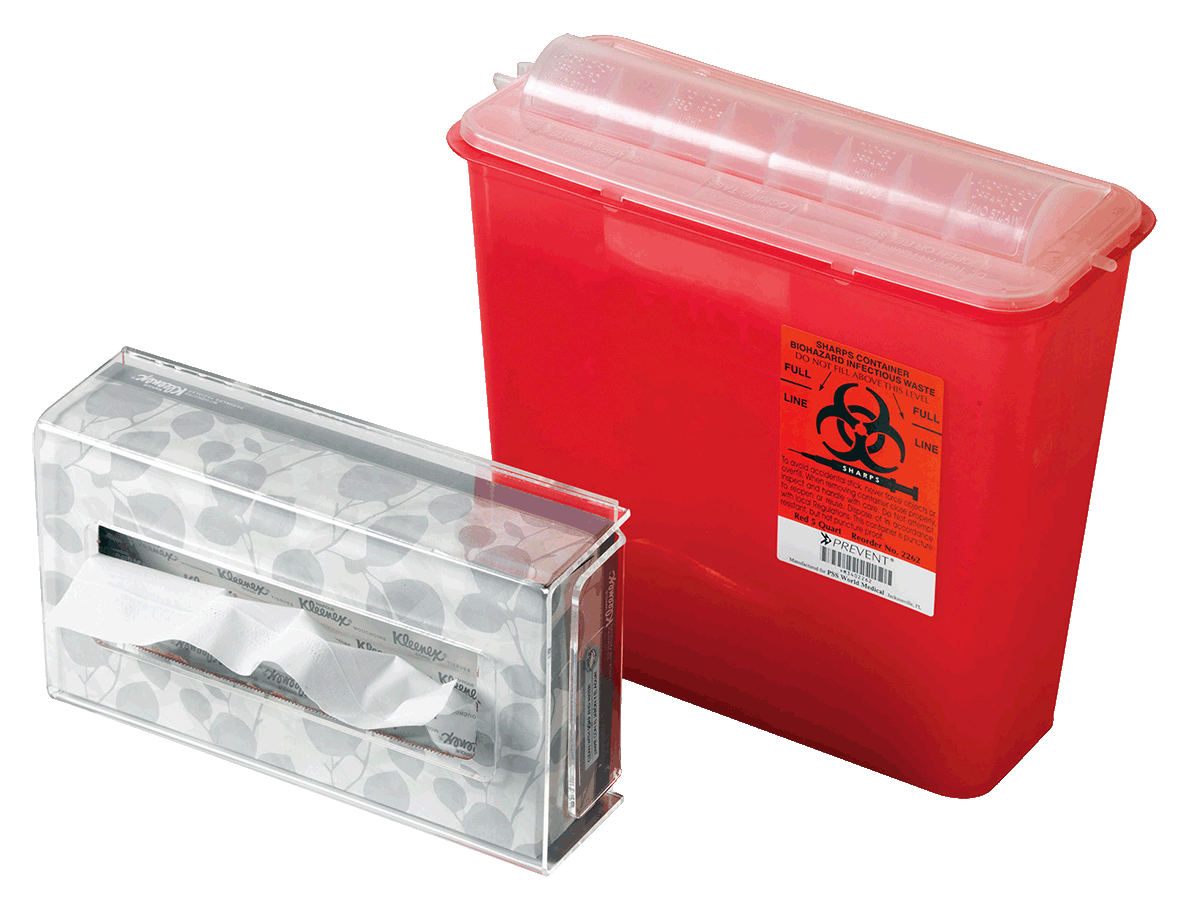

Tissue Box Holder and Sharps Container

Provides convenient placement of tissue box and sharps container on I-OPS arm. Available on both basic and deluxe arms. Lockable mounting bracket. Supports 9" / 229mm long by 4 3/4" / 121mm wide by 2" / 51mm deep tissue boxes. Size of sharps container: 5 qts (1.25 gallons).
